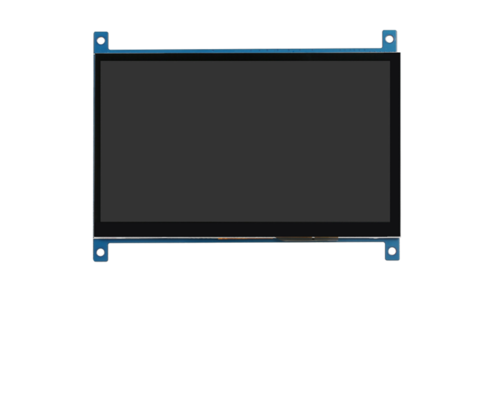

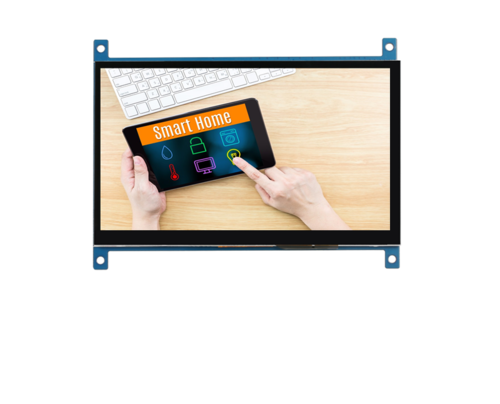

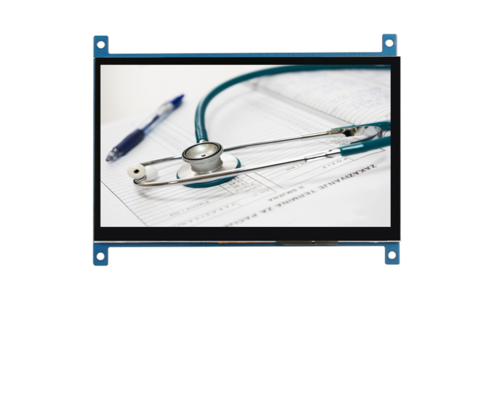

7 Inch 1024×600 IPS HDMI USB Touch Display

12.1 Inch Capacitive Touch Screen
7 Inch 1024x600 IPS HDMI USB Touch Display
7 Inch 1024x600 IPS HDMI USB Touch Display
7 Inch 1024x600 IPS HDMI USB Touch Display
7 Inch 1024x600 IPS HDMI USB Touch Display

T070GBP002

7 Inch 1024×600 IPS HDMI USB Touch Display


Production State

In Production

Stock Quantity

10 Pieces

Product Details

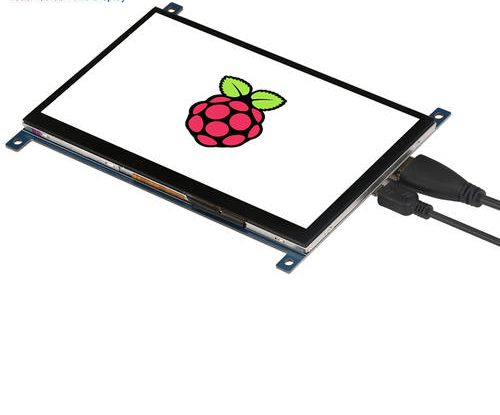

7 Inch 1024×600 IPS HDMI USB Touch Display: Raspberry Pi Module 7 Inch 1024×600 IPS LCD Panel Capacitive Touch Screen Monitor Display

Technical Datasheet Download: T070GBP002-V1 Mechanical Drawing

7 Inch 1024×600 IPS HDMI USB Touch Display Overview:

The 7 Inch 1024 x 600 IPS HDMI USB Touch Display (The product model is T070GB P002) is a combination of TFT LCD Display and PCAP Capacitive Touch Panel and HDMI USB PCB, the power supply is 5V. It works on different kinds of OS like Raspbian, Windows, Android, Linux, Arch Linux, and others of its kind.

Features of 7 Inch 1024×600 IPS HDMI USB Touch Display:

A standard resolution should be 1024 pixels width by 600 pixels height which is termed as the high definition resolution.

IPS (In-Plane Switching) – that enables good viewing angles, and good color reproduction.

This implies that the displays possess a high brightness level which is suitable for use even under well-lit conditions.

This further supports the wide viewing angles that come with the IPS panel as explained by the company.

This relates to the type of connection utilized in the fixing of the touch panel on the display. Optical bonding has a higher degree of clarity and less glare than for example tape bonding.

Supports multi-touch gestures: sources claim that the number can be up to five, as stated before.

It refers to the manufacturing of the itself using two layers of glass; the cover glass and the sensor glass separated by a narrow gap.

This is the model of the Integrated Circuit Chip that handles touch in the display, its model is GOODIX IC Chip GT911.

This is the type of communication that is adopted by the touch controller about the main device.

Benefits of 7 Inch 1024×600 IPS HDMI USB Touch Display:

Compact size and portability:

Due to its small size of 7 inches it is recommended for projects or applications where space is a limiting factor.

Easy connectivity:

As for connectivity, HDMI is used to work with a wide range of devices such as Raspberry Pi, mini PCs, game consoles, or laptops; USB.

Potential for low power consumption:

Thus, depending on the model, it can be used in battery-powered applications.

Sharp and clear visuals:

The screen has a resolution of up to 1024 xl600 is pretty decent for a 7 inch tablet.

Wide viewing angles:

As for its color production, it proved to be good with clarity and contrast lost only when the screen is viewed from wider angles, a feature of IPS panel technology.

Sunlight readability:

 This display has high luminosity, which means that it is applicable to be used in brightly lit areas.

Why choose Wanty?

It ensures conformity to the quality of the products and services provided in the global market, hence providing a stable quality assurance mechanism. In considering the proposition and creation, through its conceptualization, implementation, and provision of umbrella consultations, not forgetting continual customer care and great service delivery. Over a decade of experience in comprehending the dynamics of a market along with the application of technology while giving expert consultations to customers. Since Wanty is a direct factory supplier, the prices are generally low to make sure customers obtain value-added products. We are always ready to respond to our customers within one business day and fast delivery.

Technical Parameter

Model
T070GBP002
Size
7 inches
LCD Type
TFT
Display Type
IPS
LCD Interface
RGB
Pin No.
50Pin
Resolution
1024×600
Brightness
250cd/m2
Viewing Direction
All o’clock
Viewing Angle Range
85/85/85/85Deg.
Contrast Ratio
LCD Active Area (mm)
154.21×85.92
LCD Outline Dimension (mm)
165.00×125.00×3.5
Anti-Glare/Anti-Reflection/Anti-Fingerprints
Available
Touch Type
Capacitive
Touch Points
5-10 Points
Touch IC Chip
GT911
Touch Structure
G+G
Touch Interface
IIC/I2C
Touch Hardness
6H
Module Structure
PCAP Touch & LCD Display & PCB
PCB Interface
HDMI (for display and image), USB (for touch and power)
Cables
With/Without
Operating Temperature
-10ºC~+50ºC
Storage Temperature
-20ºC~+60ºC
Bonding Method
Optical Bonding, Air Bonding
Support System
Windows, Android, Linux etc
Application Fields
Industrial Control, Home Automation, Medical Device, Self-service Terminal etc



7 Inch 1024x600 IPS HDMI USB Touch Display Customize Solution

Touch Drivers customize

From Wanty it is possible to get general information about the supported Operation Systems, as well as if there are any Touch drivers required or customized.

Operating System Customize

It is customize and easily recognizable for the majority of the users, media consumption pleasant, simple bookkeeping, and applications which are delicately devoted to performing on the Android platform, Linux, and Windows 10 IoT Core.

More Touch Points

Wanty has better control, especially for touch movements like two/fingers pinching to zoom or three/fingers to rotate in 3D or draw on the screen or any use of the fingers more than two in general.

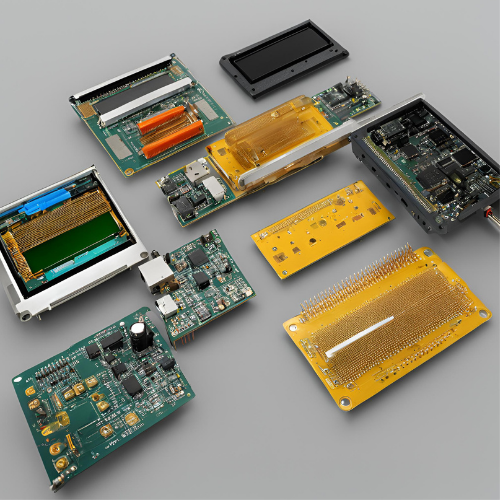

TFT LCD Module

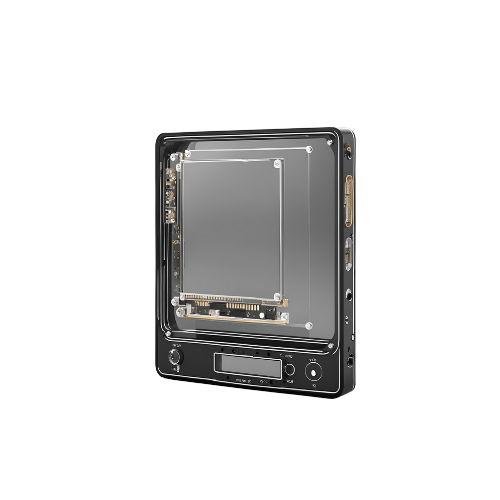

Design Customize:

Wanty Provide an extra shield to the display. It is suitable for industrial utilization or applications which are rough. Introduce a more modern appearance and have a greater amount of the display size visible to the viewer.

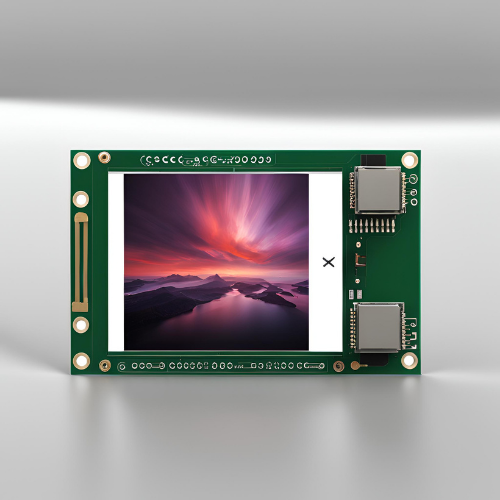

Client’s Case and Application

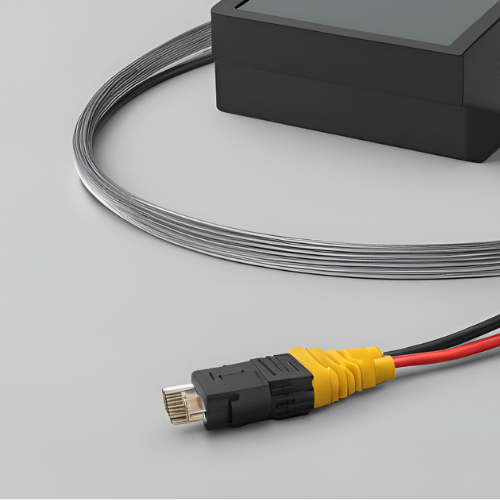

Lcd Cable Customization
