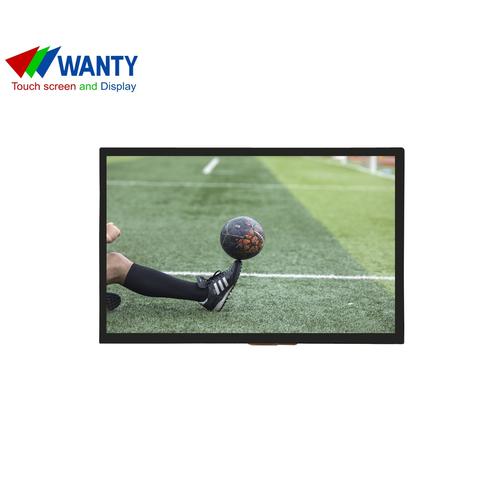

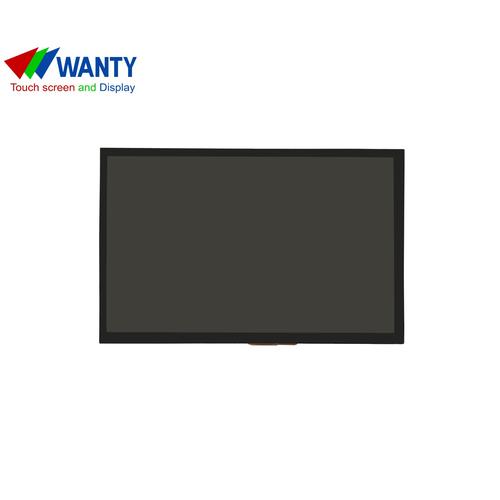

10.1 Inch Touch Screen Display, Compatible With Raspberry Pi, HDMI USB 1280×800

T101GBP003

10.1 Inch Touch Screen Display, Compatible With Raspberry Pi, HDMI USB 1280×800


Production State

In Production

Stock Quantity

10 Pieces

Size:

10.1inch

LCD Mode:

TFT

Display Type:

IPS

Resolution:

1280*800

Brightness:

350cd/m2

Support Points:

10Points

Port:

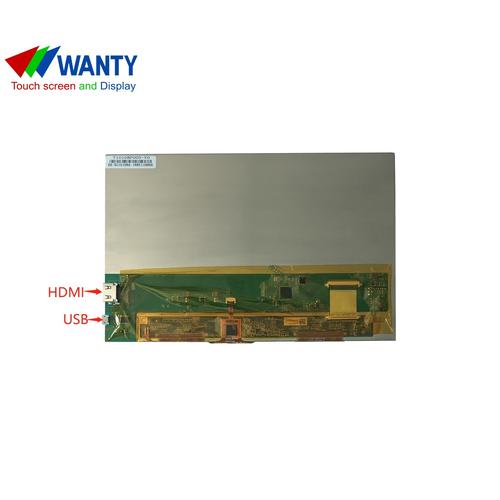

HDMI(For display), USB(For touch & power)

Module Structure:

CTP Touch + LCD Display + HDMI PCB

Product Details


10.1 Inch Touch Screen Display: 1280×800 HDMI USB Touch Display,  Capacitive Touch Panel Touchscreen Display Module

Technical Datasheet Download: T101GBP003-V0 .pdf

Introducing the 10.1-inch Touch Screen Display, Compatible With Raspberry Pi, a versatile and high-performance display for interactive display needs. This kit combines a vibrant TFT LCD with 1280×800 resolution and IPS technology, ensuring vivid colors and wide viewing angles even in sunlight. It has been equipped with a robust PCAP capacitive touch panel with a G+G structure, driven by the GOODIX GT9271 IC and supporting 10-point touch via an IIC interface. Compatible with multiple operating systems including Raspbian, Windows, Android, and Linux variants like Arch Linux, this displays another amazing feature is that, it can tolerate diverse environments. Perfect for applications requiring precise touch interaction and exceptional visual clarity. It is one of the top sellers in the display industry enhancing user experience across various platforms.

Features of the 110.1 Inch Touch Screen Display HDMI USB

Key Display Features

  • High Resolution: Say Goodbye to bad visuals now because a 10.1-inch HDMI USB Touch Display comes up with 1280×800 resolution offering clear and detailed visuals.
  • IPS Technology: Its Wide viewing angle feature makes it more optimal in terms of visibility from various positions.
  • Sunlight Readable: Excellent outdoor performance, ideal for applications in bright environments.
  • Optical Bonding/Tape Bonding Options: This feature increases the display clarity and durability.
  • Low Power Consumption: 5V power supply for energy efficiency.

Touch Panel Features

  • Capacitive Touch: Responsive and accurate multi-touch functionality.
  • 10-Point Touch: Supports simultaneous interactions from multiple users.
  • Durable Glass: Scratch-resistant with 6H hardness.

Versatility and Compatibility

  • Wide OS Compatibility: When it comes to compatibility then this display is simply WOW, Yes it is compatible with operating systems like Windows, Android, Linux, and Raspberry Pi.
  • HDMI and USB Interface: Easy connectivity to various devices.

Applications of 10.1 Inch Touch Screen Display

  • Industrial Control: HMI panels, machine control interfaces, and monitoring systems.
  • Home Automation: Smart home control panels, security systems, and interactive displays.
  • Medical Devices: Patient information terminals, diagnostic equipment, and medical carts.
  • Self-Service Terminals: Kiosks, ATMs, ticketing machines, and interactive information displays.
  • Education: Interactive whiteboards, educational kiosks, and student computing devices.
  • Retail: Point-of-sale systems, product information displays, and interactive marketing tools.
  • Automotive: In-vehicle infotainment systems, navigation displays, and instrument clusters.

Few more Applications that make it more worth buying:

  • Digital signage
  • Portable gaming consoles
  • Portable media players
  • Industrial automation
  • Robotics

10.1-inch HDMI USB Touch Display high resolution, IPS technology, capacitive touch, and wide OS compatibility make this display more valuable.

Technical Parameters:

Model
T101GBP003
Size
10.1 inches
LCD Type
TFT
Display Type
IPS
LCD Interface
LVDS
Pin No.
40Pin
Resolution
1280×800
Brightness
200cd/m2
Viewing Direction
All o’clock
Viewing Angle Range
85/85/85/85Deg.
Active Area (mm)
216.96×135.60
Module Outline Dimension (mm)
229.46×149.10×4.90
Anti-Glare/Anti-Reflection/Anti-Fingerprints
Available
Touch Type
Capacitive
Touch Points
10 Points
Touch IC Chip
GT9271
Touch Structure
G+G
Touch Interface
IIC (I2C)
Touch Hardness
6H
Module Structure
PCAP Touch & LCD Display & PCB
PCB Interface
HDMI USB
Cables
With/Without
Operating Temperature
-10ºC~+50ºC
Storage Temperature
-20ºC~+60ºC
Bonding Method
Optical Bonding, Air Bonding
Support System
Windows, Android, Linux etc
Application Fields
Industrial Control, Home Automation, Medical Device, Self-service Terminal etc



TFT LCD Custom Solutions:

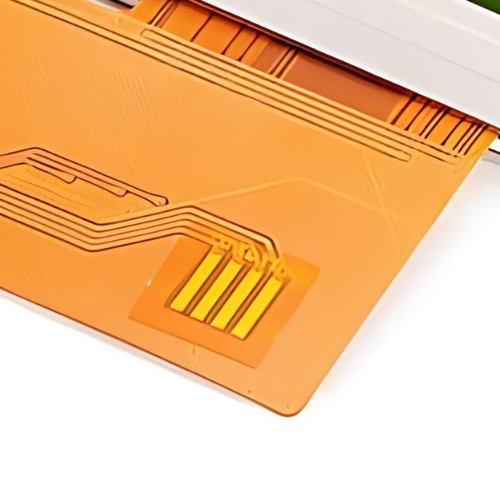

LCD Cable Customization

Wanty gives you freedom: Choose Length, position, pinout – We will make LCD cables to your needs.

Touchscreen Add-on

We offer custom solution for touchscreen too. Whether you choose capacitive or resistive touch screen technology, we are here to customize.

LCD Interface Customization

Choose your connection! HDMI, USB,SPI, VGA and more – We will incorporate into the dispaly as per requirements.

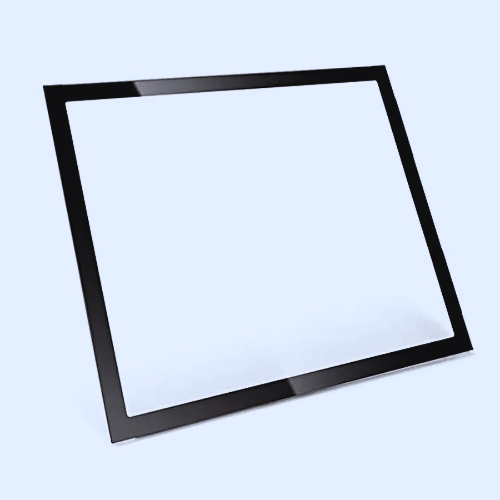

LCD Cover Glass

Wanty is here to customize various thicknesses and even optical bonding to shield against scratches, bumps, moisture, and debris. Keep your display protected with our advance custom solution.
