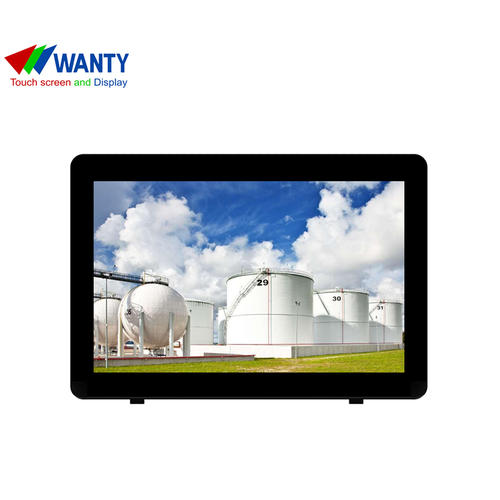

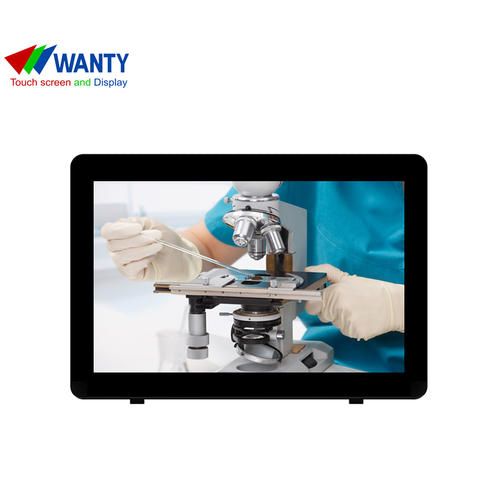

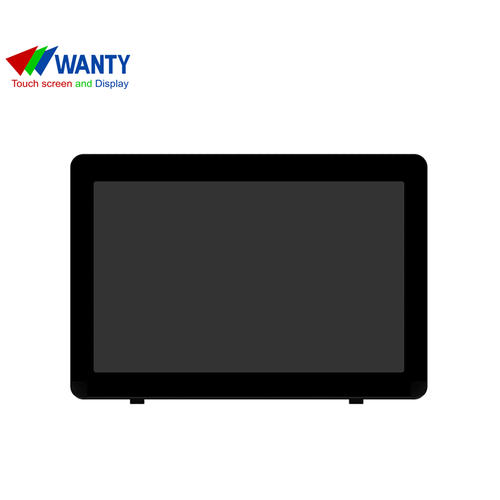

10.1 Inch Ips Capacitive Screen
T101GBP005
10.1 Inch Ips Capacitive Screen
Production State
In Production
Stock Quantity
10 Pieces
Product Details
10.1 Inch IPS Capacitive Screen: 1280×800 HDMI USB Capacitive Touch Screen IPS TFT LCD Display With Acrylic Protection Case Raspberry Pi Touch Display Kits
Technical Datasheet Download: T101GBP005 Mechanical Drawing
Get your hands over the top seller of the year, 10.1 Inch Ips Capacitive Screen, that comes up with ultimate display flexibility with a resolution: of 1280×800 HDMI USB Capacitive Touch Screen IPS TFT LCD Display. Specifically geared toward Raspberry Pi fans, the Acrylic Protection Case in this kit makes it more convenient and robust. Get Yourself lost in rich graphics and responsive touch capabilities perfect for the DIYer or specialist.
10.1 inch IPS Capacitive Screen Features
Core Display Features
- Display: 10.1 inch IPS display for vivid visuals will amaze you in all possible ways.
- High Resolution: 1280×800 resolution for high-quality content, perfect for those who love to experience high HD quality.
- Wide Viewing Angles: 85/85/85/ 8-degree viewing angles with excellent clarity.
- IPS Technology: Delivers consistent color and image quality from various positions.
- High-quality display: 300cd/m2 brightness for crystal clear visibility in any lighting condition
- Optional Optical Bonding: Increases viewing clarity and reduces reflections while improving touch responsiveness.
- Anti-Glare, Anti-Reflective, and Fingerprint Coatings: These features add to visibility making your display super-strong.
Touchscreen Features
- Capacitive Touch: Responsive, accurate, and multi-touch capable makes it more human-friendly.
- 10-Point Touch: Allows for 10 simultaneous finger touches on the same surface.
- Touch IC GT9271: Stable and well-known touch controller.
- G+G Touch Structure: This Structure makes it a durable and high-response touch panel.
- IIC Interface: Because of the IIC Interface you can easily communicate with the display controller more efficiently.
- Scratch and Wear Resistant – 6H hardness touch division.
Connectivity and Integration
- HDMI + USB Interfaces: Say Goodbye to Bad Connectivity. It is capable of Conveniently connecting to any device.
- LVDS Interface: Works with most standard display controllers.

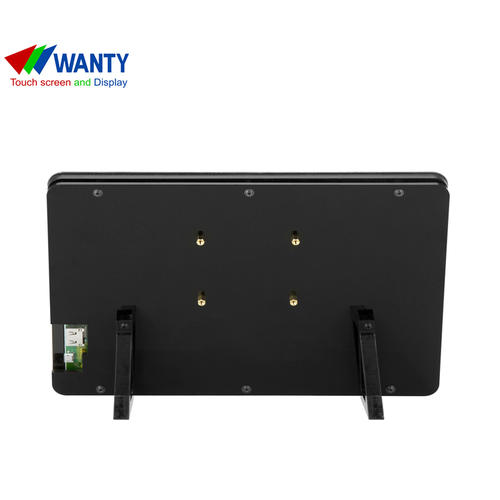

- Acrylic Protection Case: Prevent the display from being damaged.
- Raspberry Pi Compatible: Perfect for DIY projects and embedded systems.
Performance and Compatibility
- Operating temperature -10ºC ~ +50: Applicated in various operating environment
- Because of the material, it has an extremely wide storage temperature: (-20ºC~+60ºC). This feature makes it live a long lifespan.
- Broad Compatibility Support: Win, AndroidASIS system.
- Wide Range of Applications: Perfect for industrial control, home automation, medical devices, and more.
This 10.1-inch IPS capacitive touchscreen display is characterized by high video quality and a variety of connection options in a rugged design with durable enough to serve an extensive application field.
Technical Parameters:
|
Model
|
T101GBP005
|
|
Size
|
10.1 inches
|
|
LCD Type
|
TFT
|
|
Display Type
|
IPS
|
|
LCD Interface
|
LVDS
|
|
Pin No.
|
40Pin
|
|
Resolution
|
1280×800
|
|
Brightness
|
300cd/m2
|
|
Viewing Direction
|
All o’clock
|
|
Viewing Angle Range
|
85/85/85/85Deg.
|
|
Active Area (mm)
|
216.96×135.60
|
|
Module Outline Dimension (mm)
|
248.67×175.16×14.30
|
|
Anti-Glare/Anti-Reflection/Anti-Fingerprints
|
Available
|
|
Touch Type
|
Capacitive
|
|
Touch Points
|
10 Points
|
|
Touch IC Chip
|
GT9271
|
|
Touch Structure
|
G+G
|
|
Touch Interface
|
IIC (I2C)
|
|
Touch Hardness
|
6H
|
|
Module Structure
|
PCAP Touch & LCD Display & PCB & Acrylic Case
|
|
PCB Interface
|
HDMI USB
|
|
Cables
|
With/Without
|
|
Operating Temperature
|
-10ºC~+50ºC
|
|
Storage Temperature
|
-20ºC~+60ºC
|
|
Bonding Method
|
Optical Bonding, Air Bonding
|
|
Support System
|
Windows, Android, Linux etc
|
|
Application Fields
|
Industrial Control, Home Automation, Medical Device, Self-service Terminal etc
|
TFT LCD Custom Solutions:

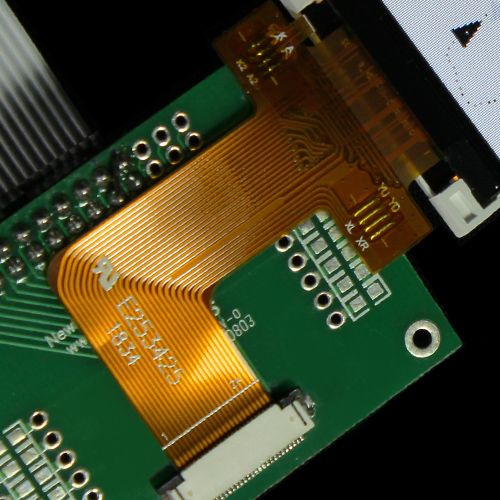

LCD Cable Customization

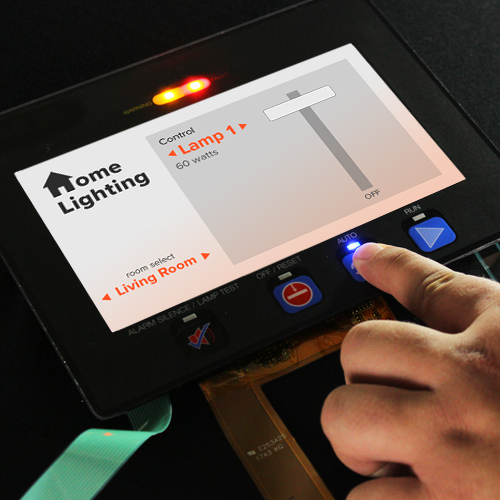

1.8" Touchscreen Add-on
