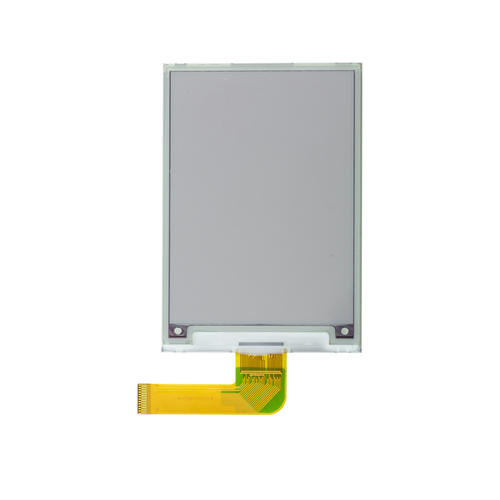

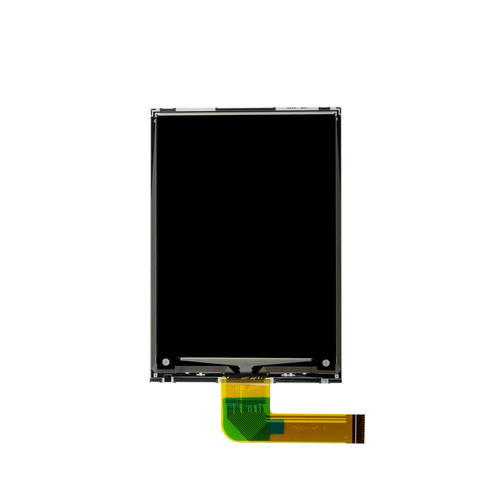

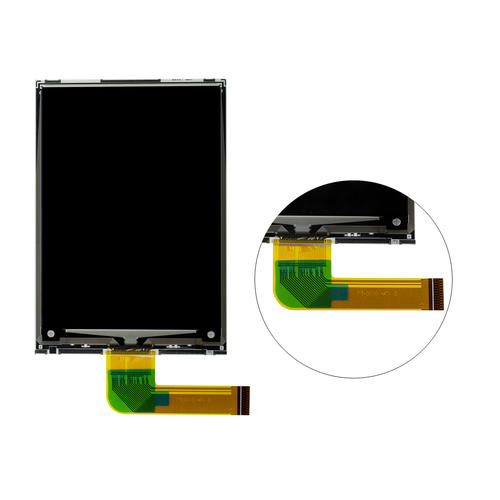

3.1 Inch LCD Display Module 240×320 SPI Capacitive Touch
TYKEGM031001T01
3.1 Inch LCD Display Module 240×320 SPI Capacitive Touch
Production State
In Production
Stock Quantity
10 Pieces
Product Details
Overview of 3.1 Inch LCD Display Module, Epaper Display:
The part number for this item is TYKEGM031001T01 and it is a reflective electrophoretic display module with an active matrix thin film transistor substrate. In the active area, the diagonal size is 3. jar file labeled “MyPicture1.jar” and is of size 1 KB with the dimension of 240×320 pixels. Thus, the 3.1 inch LCD Display Module panel is capable of displaying 1-bit black/white and red images based on the associated 768 lookup table used. The circuit included on the panel is a gate and source driver, the timing controller. The oscillator in addition to a DC-DC boost circuit for generating the necessary voltages, memory to store the frame buffer and the lookup tables, circuit to control VCOM, and the border settings.
3.1 Inch LCD Display Module Features:
High Resolution: 240×320 to have better clarity and details of the visuals to be presented.
Capacitive Touch Panel: This is useful to have fine and accurate control over the touch of the user.
Ultra Low Power Consumption: Best used for devices that are used with batteries.
Wide Viewing Angles: It maintains the image quality, not only with the front side but also with the side, top, and bottom views.
On-Chip Display RAM: Helps in the integration of the systems and decreases the utilization of external memory.
Flexible Interface: It supports 4-Wire and 3-Wire SPI to ensure the functionality of the device with different systems.
High Reflectance and Contrast: It provides good visibility, especially during the day or when it is well-lit.
I2C Interface: Includes the possibility of communication with other temperature sensors out of the refrigerator for temperature readings.
Advantages:
Small footprint: Suitable for mobile devices and in situations where there are physical limitations to where the device can be placed.
Sharp visuals: The quality of the display content; this screen supports a 240 x 320 pixels resolution.
User-Friendly Interaction
Capacitive touch: Is easy to use, friendly, and has a good and effective user interface.
SPI interface: Straight and fast handling of the data exchange between the board and the microcontroller.
Low power consumption: Increases battery longevity for portable devices.
Wide operating temperature range: Able to be used in many different environments.
On-chip display RAM: Reduction of the demand for extra memory and easy design.
Why choose us?
Our professionals will sit down with you to configure your display, from the point of view of the resolution, the level of touch sensitivity, as well as enclosures. We have a team of professionals who are willing to support our clients at all times so that the success could be long-term. Our concept creation and design to the development of actual prototypes and our production as well as shipment.
Mechanical Data
|
NO.
|
ITEM
|
SPECIFICATION
|
UNIT
|
|
1
|
Dot Matrix
|
320(H)×240(V)
|
–
|
|
2
|
Screen Size
|
3.1
|
Inch
|
|
3
|
Pixels Per Inch
|
129
|
–
|
|
4
|
ActiveArea
|
62.72(H)×47.04(V)
|
mm
|
|
5
|
Pixel Pitch
|
0.196×0.196
|
mm
|
|
6
|
TFT Area
|
73.8(H)×53.24(V)
|
mm
|
|
7
|
Outline Dimension
|
89.56(H)×53.24(V)×0.912(D)
|
mm
|
|
8
|
Pixel Configuration
|
Rectangle
|
–
|
|
9
|
Driver IC
|
SEE370
|
–
|
|
10
|
Module Weight
|
TBD±10%
|
Gram
|
