2.66 Inch Display Module with 296×152 Spi Eink Epaper Epd
TYKEGM026605M05
2.66 Inch Display Module with 296×152 Spi Eink Epaper Epd
Production State
In Production
Stock Quantity
10 Pieces
Product Details
Overview of 2.66 Inch Display Module Eink Epaper EPD :

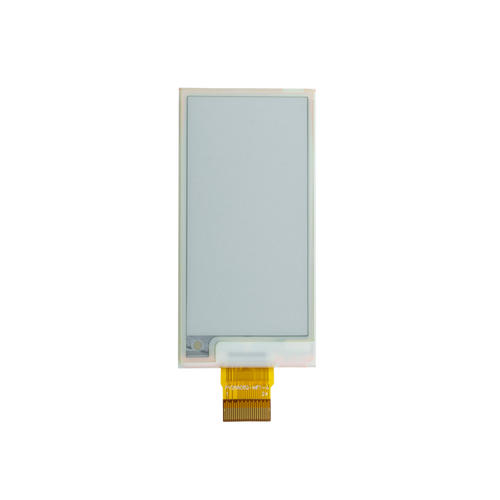

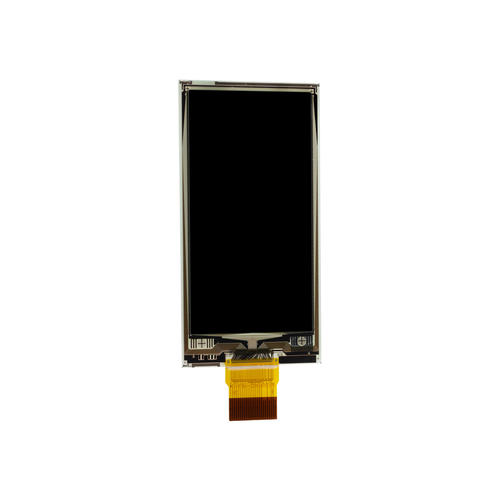

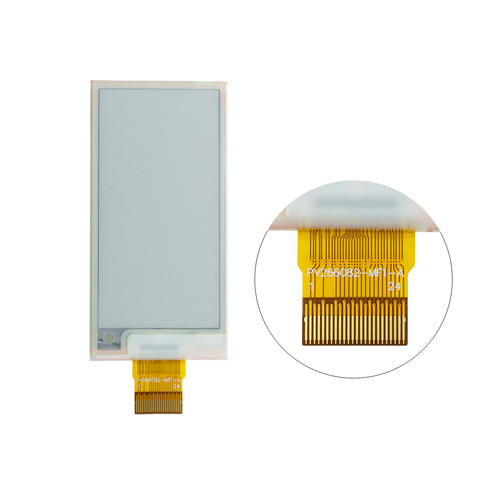

TYKEGM026605M05 2.66 Inch Display Module is a reflective electrophoretic display that is an active matrix TFT substrate display. The diagonal of the area where the activity takes place is 2. Screen: 4 3/16” x 9 ¼” and has pixel size 128×296. Eink Epaper EPD 2. Depending upon the related lookup table, a 9 9-inch panel can display 1-bit black and/or red color images. The panel’s circuitry also includes a gate and source driver, timing controller, oscillator, a DC-DC boost circuit, and memory for the frame buffer and lookup table and VCOM and other border control circuits
Features of Eink Epaper EPD 2.66 Inch:
Ultra-low power consumption: Suitable for devices that are operated by batteries as it conserves power hence, increasing battery durability.
Ultra-wide viewing angle: Ignition allows for a good view from different angles as a means of strengthening the users’ experience.
High reflectance and contrast: It provides fine and clear text and image, in addition to coming with a high contrast feature for light surroundings.
On-chip display RAM: This makes it easier to do integrations and also offers better performance by containing memory.
Interface flexibility: 4-wire and 3-wire SPI modes are supported for the device to integrate with other systems.
Temperature resilience: Ridor uses the ability to operate and store in low as well as high-temperature ranges.
External sensor compatibility: It can be incorporated with temperature sensors for some extra features.
Advantages of 2.66 Inch Display Module:
Sunlight readability: The E-paper we used is reflective which makes it easy to read in the larger part of environments even outdoors.
Content persistence: This mode renews the display every time, and the contents can be left on screen without having to be supplied with power all the time, which helps to conserve power and hence have a longer battery backup time.
Compact size: The 2.9-inch format provides easy portability and is suitable for small gadgets and devices that require a small size.
Ultra-low power consumption: This technology is famous for its low power consumption and therefore these electronic devices are ideal for gadgets or any other that requires low power to operate.
Wide viewing angle: The letters do not fade, visibility is not an issue, and the screen can still be read from a wide array of angles thus improving the experience of the user.
Mechanical Data
|
NO.
|
ITEM
|
SPECIFICATION
|
UNIT
|
|
1
|
Dot Matrix
|
296(H)×152(V)
|
–
|
|
2
|
Screen Size
|
2.66
|
Inch
|
|
3
|
Pixels Per Inch
|
125
|
–
|
|
4
|
ActiveArea
|
60.09(H)×30.7(V)
|
mm
|
|
5
|
Pixel Pitch
|
0.203×0.202
|
mm
|
|
6
|
TFT Area
|
71.82(H)×36.3(V)
|
mm
|
|
7
|
Outline Dimension
|
85.82(H)×36.3(V)×0.926(D)
|
mm
|
|
8
|
Pixel Configuration
|
Rectangle
|
–
|
|
9
|
Driver IC
|
SE8210
|
–
|
|
10
|
Module Weight
|
TBD±10%
|
Gram
|
2.66 Inch Display Module Custom Solution

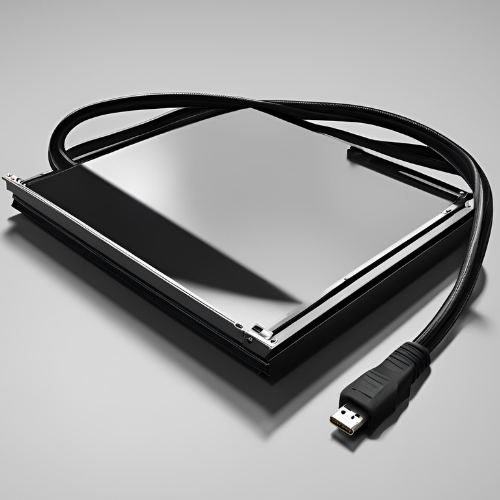

LCD Cable Customization
LCD Interface Customization
Low power consumption:

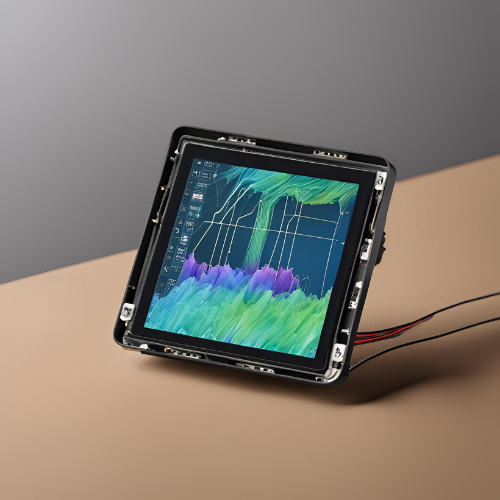

Touchscreen Add-on
