8 Inch Industrial Touch Screen Panel: The Definitive 2026 Guide

An 8 inch industrial touch screen panel is the most versatile interface for modern factory automation and rugged field applications. These panels provide a critical link between complex machinery and human operators. In my years of consulting for manufacturing plants, I have found that the 8-inch form factor strikes a perfect balance. It is large enough for detailed data visualization but compact enough for space-constrained control cabinets. Choosing the right panel determines your system's uptime and user efficiency.

What defines an 8 inch industrial touch screen panel?

An 8 inch industrial touch screen panel is a ruggedized display interface designed for harsh environments. Unlike consumer tablets, these panels feature high-grade components that resist extreme temperatures, vibration, and chemical exposure. They typically utilize industrial capacitive touchscreen technology to ensure precise input even when operators wear gloves or work in wet conditions.

When you hold a professional-grade panel, you notice the weight and build quality immediately. I recall a project in a high-heat steel mill where consumer-grade screens failed within a week. We swapped them for industrial 8-inch units with cast-aluminum housings. Those panels have now run for three years without a single pixel failure. To truly understand the internal mechanics, you should read about how a touch screen panel is explained to see the difference in layering.

Why is the 8-inch size the sweet spot for HMI?

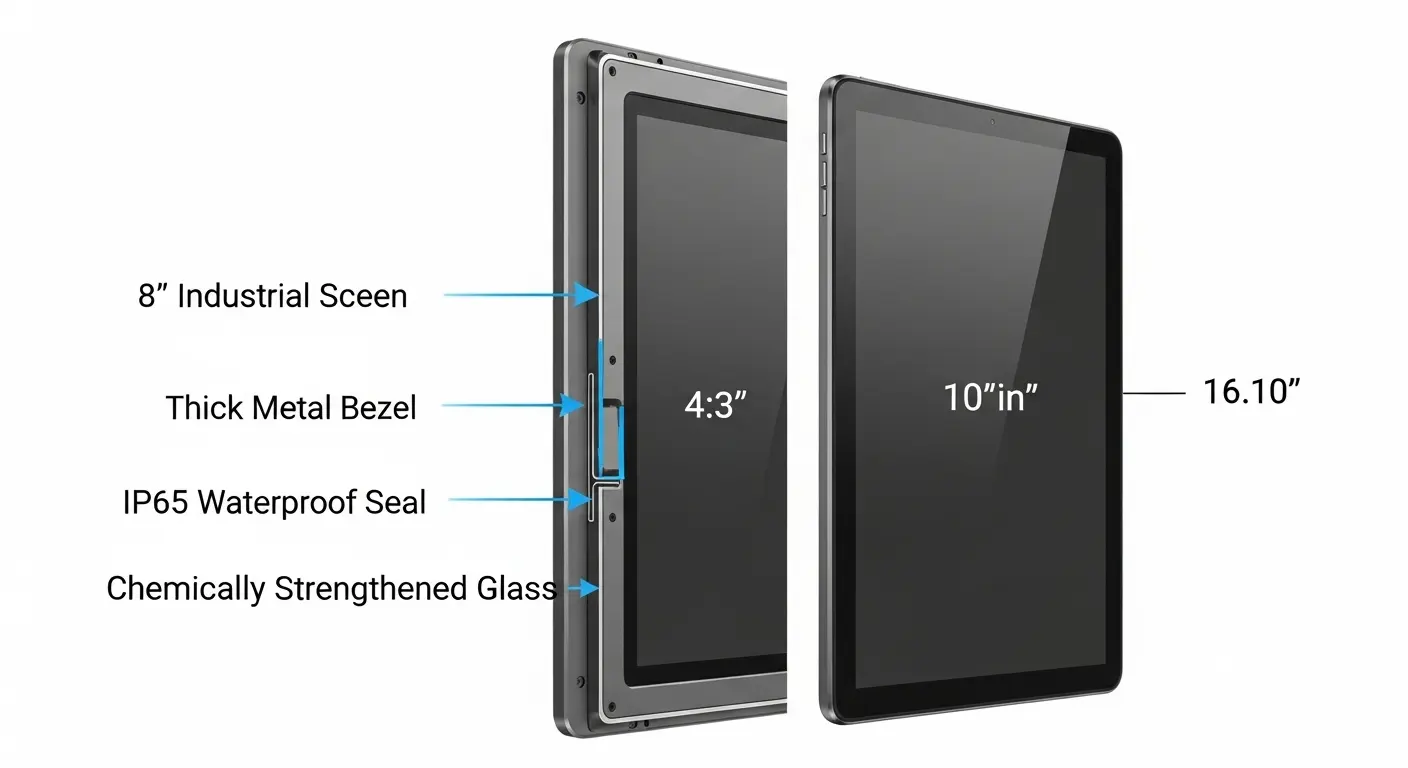

The 8-inch size is the "sweet spot" because it offers a 4:3 or 16:10 aspect ratio that fits standard touch screen HMI panels perfectly. It provides enough screen real estate for complex PLC menus and real-time graphs. However, it remains small enough to fit into standard DIN-rail mounts or handheld diagnostic enclosures without becoming cumbersome for the operator.

In modern smart factories, space is at a premium. I often see engineers try to force 12-inch screens into tight spots. This usually leads to poor ergonomics. The 8-inch panel allows for high-density information display while maintaining a slim profile.

How does an industrial capacitive touchscreen differ from consumer tech?

An industrial capacitive touchscreen differs from consumer tech through its "Projected Capacitive" (PCAP) sensor tuning. Consumer screens often fail if water splashes on them or if the user wears heavy nitrile gloves. Industrial sensors are tuned to filter out "noise" and register intentional touches only. They also use much thicker cover glass to prevent cracking in high-impact zones.

I once supervised a food processing line where humidity was constant. Standard tablets would register "ghost touches" because of the steam. We implemented an 8-inch panel with specialized controller firmware. This firmware used a mutual-capacitance algorithm to distinguish between a water droplet and a human finger. It solved the downtime issue overnight.

What technical specifications matter most for factory floors?

The technical specifications that matter most include the IP rating, sunlight readability (Nits), and operating temperature range. For most factories, an IP65 front-panel rating is the minimum requirement to protect against dust and water jets. Additionally, look for a high MTBF (Mean Time Between Failures) for the backlight, which is usually the first component to dim in 24/7 operations.

Tip: Always check the "Nits" rating. For indoor use, 300-400 nits is fine. For outdoor or high-glare environments, you need at least 1,000 nits.

Are vandal-resistant panels necessary for your project?

A vandal-resistant capacitive panel is necessary if your 8-inch screen is in a public area or a high-impact industrial zone. These panels use chemically strengthened glass, often 3mm to 6mm thick. They pass the "IK10" impact test, meaning they can withstand a 5kg steel ball dropped from 40cm. This prevents costly replacements due to accidental tool strikes or intentional damage.

I have seen many outdoor kiosks in urban centers destroyed by simple accidents. Using a standard screen is a gamble. By investing in a vandal-resistant layer, you ensure the internal LCD remains protected. It is much cheaper to replace a scratched cover glass than the entire display assembly.

How do you install and integrate these panels into existing systems?

Installing an 8-inch panel requires a precise cutout and proper grounding to prevent electrical interference. Most industrial panels use a "Clamp Mount" system that pulls the bezel tight against the cabinet gasket. You must ensure the gasket is seated perfectly to maintain the IP65 rating. For integration, most units offer I2C, USB, or RS232 interfaces to connect to your host controller or PC.

1. Check the Cutout: Use the manufacturer's CAD drawing. Even a 1mm error can break the waterproof seal.
2. Grounding: Attach the ground wire to the chassis. This prevents static buildup from affecting touch accuracy.
3. Software Configuration: Most modern industrial panels are "Plug and Play" on Windows and Linux.
4. Calibration: Use the built-in utility to align the touch points with the display pixels.

What are the most common maintenance mistakes for touch panels?

The most common mistake is using abrasive chemicals or rough cloths that micro-scratch the glass surface. Over time, these scratches harbor bacteria and reduce optical clarity. Another mistake is over-tightening the mounting clamps. This can warp the frame and lead to "ghost touches" or localized dead spots on the sensor.

• Use microfiber cloths: Never use paper towels.
• Avoid ammonia: Use 70% Isopropyl alcohol or specialized screen cleaners.
• Check gaskets annually: Heat and chemicals can cause rubber seals to perish.

How do you troubleshoot a non-responsive 8-inch screen?

To troubleshoot a non-responsive screen, first check the physical cable connections. A loose USB or I2C ribbon cable is the culprit in 90% of cases. Next, check for environmental interference. High-voltage cables running too close to the touch controller can cause signal noise. Finally, verify the driver settings in your operating system to ensure the "Touch Input" device is recognized.

Tip: If the screen works but is inaccurate, a simple recalibration usually fixes the mapping between the sensor and the OS.

What is the future of 8-inch industrial interface technology?

The future involves the integration of haptic feedback and "Hover" touch technology. Haptic feedback provides a vibration when a button is pressed, giving the operator confidence without looking at the screen. Hover technology allows users to navigate menus without actually touching the surface, which is a major benefit for sterile medical environments or extremely dirty workshops.

We are also seeing a shift toward "Edge AI" integration within the panel itself. This allows the 8-inch HMI to process data locally rather than sending everything to a central server. This reduces latency and improves real-time machine control.
