Touch Screen HMI Panels 8 Inch, IIC, I2C, GG, For Industrial Touch Screen
WTY080733A02
Touch Screen HMI Panels 8 Inch, IIC, I2C, GG, For Industrial Touch Screen
Production State
In Production
Stock Quantity
10 Pieces
Product Details
Touch Screen HMI Panels 8 Inch, IIC I2C GG 4:3 5 Points Multi Points Touchscreen Projective Capacitive Touch Screen: Technical Datasheet Download: WTY080733A02Mechanical drawing.pdf
Touch Screen HMI Panels 8 Inch Features:

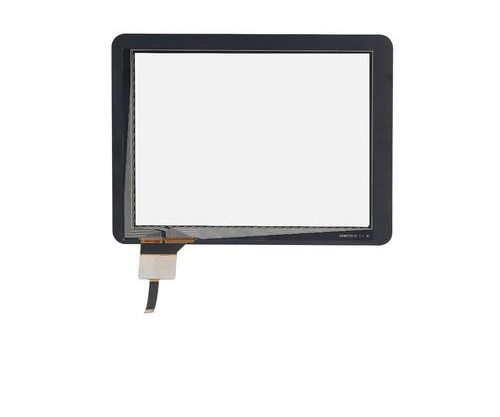

The 8 Kiosk Touch Screen Capacitive Industrial Touch Screen Panel Hmi (Model No. WTY080733A02) is a G+G structure capacitive touch panel in which the structure consists of a cover glass, sensor glass, driver IC, and FPC. It is controlled by a FOCALTECH IC Chip FT5526, which is an IIC interface and encompasses 5 points of touch.
Advantages:
- Improved User Experience:
Touchscreens are far better than button-based interfaces as they give a more natural feel to using the device. With the implemented HMI, users can interact easily and naturally with the system; this enhances the learning ability and minimizes making mistakes.
- Enhanced Efficiency:
Touch screens enable the user to input information and control functions in a fast and convenient manner thus increasing productivity. Real-time data visualization ensures that the operators are in a position to make the right decisions at the right time.
- Space Saving:
With this, the touchscreen can pack many buttons and functions into one panel reducing the size of the HMI panel. This is particularly useful where the space available for the installation of the fixtures is constrained.
- Greater Flexibility:
HMI panels with touch screens are quite versatile in design. It is possible to develop the interface, the features, and the representations of data to best meet your requirements.
If you are looking for the World’s top-notch touchscreen HMI Panels 8 Inch, then you are at the right place. Get your hands over this panel we assure you that you wont regret buying it. Its Features will not only amaze you but these are perfect to fulfill today’s era requirements. From resolution to consumption, everything is simply wow.
Technical Parameters:
|
Model
|
WTY080733A02
|
|
Size
|
8 inches
|
|
Interface
|
IIC (I2C)
|
|
Structure
|
G+G
|
|
IC Chip
|
FT5526
|
|
Resolution
|
1024×768
|
|
Hardness
|
6H
|
|
Transparency
|
≥82%
|
|
Aspect Ratio
|
4:3
|
|
Working Voltage
|
2.8V-3.3V
|
|
Touch Points
|
5 points
|
|
Viewing Area (mm)
|
162.80*122.16
|
|
Outline Dimension (mm)
|
196.22*150.11
|
|
Operating Temperature
|
-20ºC~+70ºC
|
|
Storage Temperature
|
-30ºC~+80ºC
|
|
Support System
|
Windows, Android, Linux etc
|
|
Application Fields
|
Industrial Control, Home Automation, Medical Device, Self-service Terminal etc
|
Touch Screen Hmi Panels
Display size customization

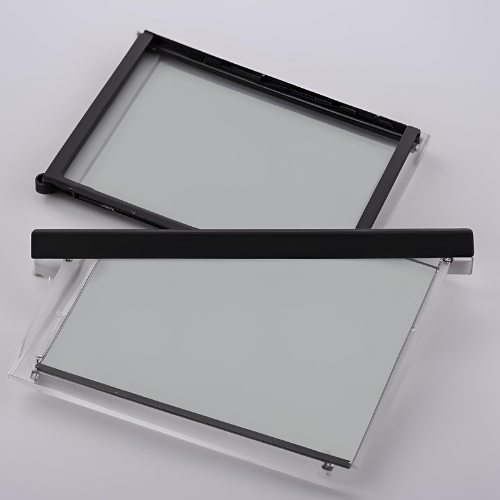

Cover glass customization
Number of Touch Points

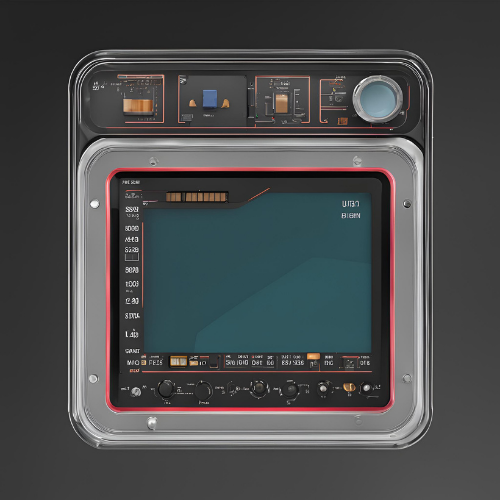

HMI Touch Fine-Tuning customization
Explore similar products
Client’s Case and Application

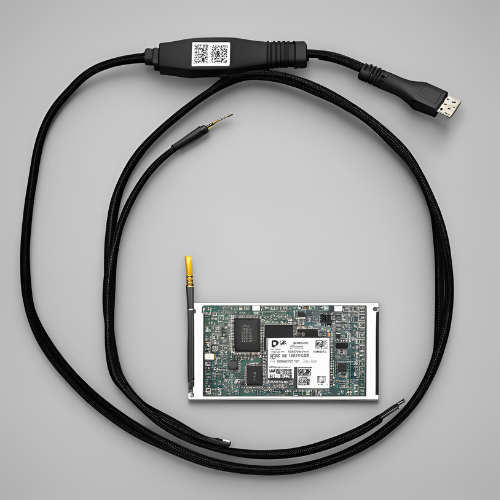

Lcd Cable Customization
