800×480 Touch Screen Display, 7 Inch RGB TN TFT LCD Display, IIC Capacitive
WTY070144A15LM
800×480 Touch Screen Display, 7 Inch RGB TN TFT LCD Display, IIC Capacitive
Production State
In Production
Stock Quantity
10 Pieces
Product Details
800×480 Touch Screen, With 7 Inch RGB TN TFT, IIC Capacitive Touch Screen Touch Display: Factory Wholesale 7 Inch IIC G+G PCAP Multi Capacitive Touchscreen 800×480 Outdoor TFT LCD Touch Display
Technical Datasheet Download: CTP WTY070144A15 Mechanical Drawing
Technical Datasheet Download: LCD WTY070QW71A01 Specification

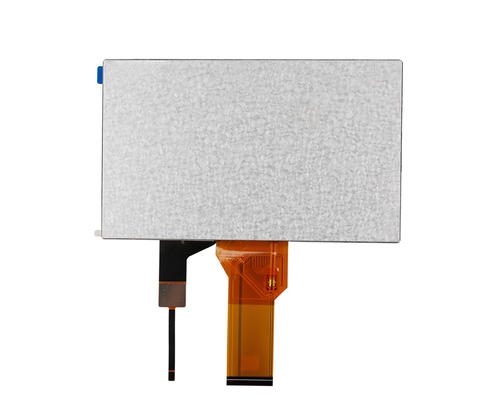

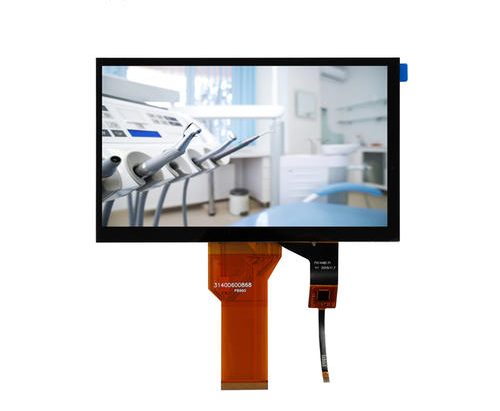

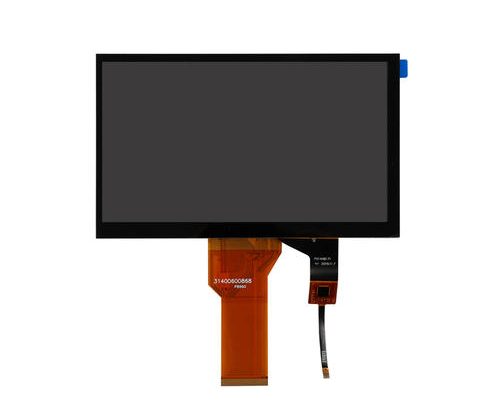

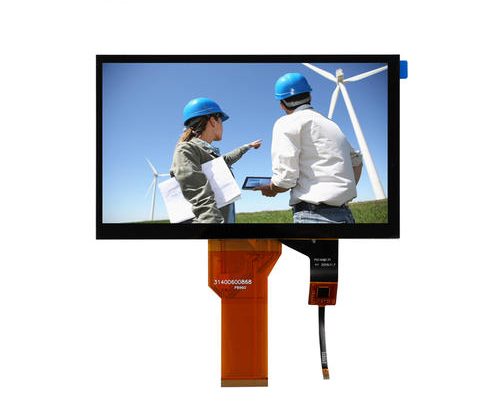

The 7 Inch 800×480 RGB TN TFT LCD Touch Display With IIC (Model No. WTY070144A15LM) is a color TFT LCD panel with 800×480 resolution and a standard 50pin RGB interface, which has function of sunlight readable, high brightness, tape bonding, wide temperature.
Key Features of 800×480 Touch Screen:
Size: 7-inch diagonal
Resolution: 800×480 pixels
Panel Type: TN
Color arrangement: RGB strip
Touch Technology: Capacitive
Structure: There is a capacitive touch panel called G+G (Glass + Glass).
Controller: GT911 IC Chip
Interface: I2C
Multi-touch: Allows supporting up to five touch points at a time
Clear and responsive touch: Thus, G+G capacitive touch panel provides a fast and accurate response to fingertip sense solution and control.
Advantages of 800×480 Touch Screen more valuable:
Clear and Responsive Touch:
The G+G capacitive touch panel responds accordingly to all operations done with fingertips; the response is accurate and immediate.
Robust Construction:
The two-layered glass screen offers good resistance to scratch and is also highly resistant to impact.
Efficient Power Usage:
The I2C interface is the most energy-friendly for the gadget when compared to most other forms of communication.
Versatile Multi-touch:
Up to 5 touch points are supported offering gestures and commands during use of the given device.
Durability:
In this regard, Wanty doesn’t make any compromise on durability since it aims at making cycling equipment that has quality, reliability, and performance by testing it on rigorous conditions for its users’ long-term benefits.
Support and Warranty:
Offers technical support and a guarantee, thus providing for the quality and satisfaction of the consumers.
Why choose Wanty?
Wanty Manufacturers takes pride in manufacturing quality capacitive Touch Screens and also provides top-tier support. When you purchase this model, you’re not just getting a touch screen, you’re gaining a reliable partner for your project. Our team is dedicated to providing help by all means, even though we offer customization solutions too. If you are interested then get in touch with us.
Technical Parameters
|
Model
|
WTY070144A15LM
|
|
Size
|
7 inches
|
|
LCD Type
|
TFT
|
|
Display Type
|
TN
|
|
Interface
|
RGB
|
|
Pin No.
|
50Pin
|
|
Resolution
|
800×480
|
|
Brightness
|
450cd/m2
|
|
Viewing Angle Range
|
70/70/50/70Deg.
|
|
Contrast Ratio
|
500:1
|
|
LCD Active Area (mm)
|
154.08×85.92
|
|
LCD Outline Dimension (mm)
|
164.90×100.00×5.70
|
|
Touch Type
|
Capacitive
|
|
Touch Points
|
5 points
|
|
Touch IC Chip
|
GT911
|
|
Touch Structure
|
G+G
|
|
Touch Interface
|
IIC (I2C)
|
|
Touch Hardness
|
6H
|
|
Operating Temperature
|
-20ºC~+70ºC
|
|
Storage Temperature
|
-30ºC~+80ºC
|
|
Bonding Method
|
Optical Bonding, Air Bonding
|
|
Support System
|
Windows, Android, Linux etc
|
|
Application Fields
|
Industrial Control, Home Automation, Medical Device, Self-service Terminal etc
|
LCD Cable Customization
LCD Interface Customization
Panel Type
Brightness Power
