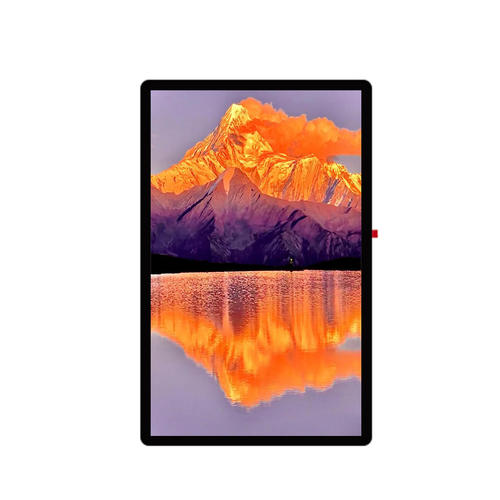

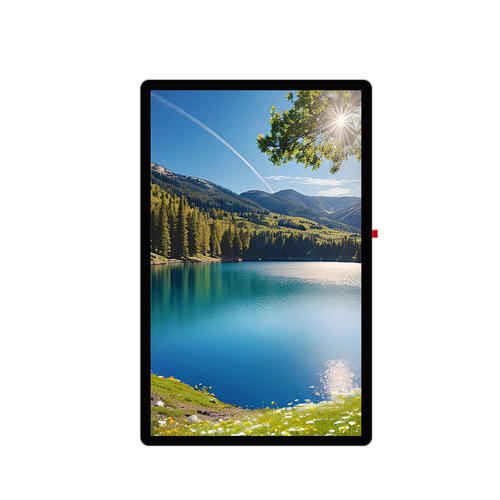

11 TFT LCD Module
TYI110SGMI300
11 TFT LCD Module
Production State
In Production
Stock Quantity
10 Pieces

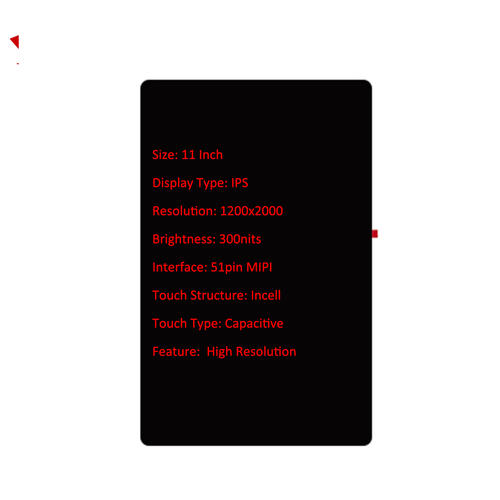

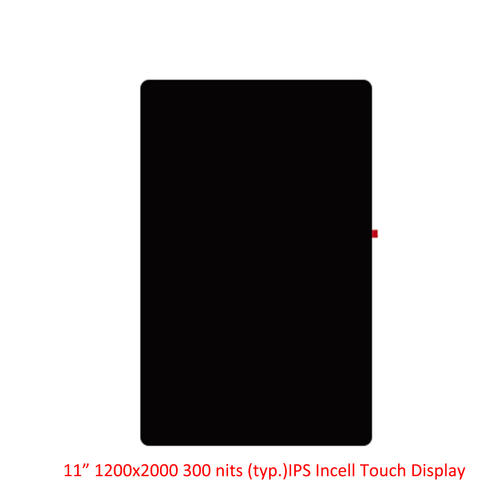

Size:
11 inch
Display Type:
IPS
Resolution:
1200x2000
Brightness:
300nits
Touch Structure:
incell
Touch Type:
Capacitive
Feature:
High Resolution, High Definition， Light Weight
Product Details
11 TFT LCD Module Overview:
The full form of TFT LCD is Thin-Film Transistor Liquid Crystal Display. This technology comes into being for high-quality screens.
The TYI110SGMI300 11 TFT LCD Module is an ideal choice for applications requiring superior visual quality and durability. This module is unique from others because of the integration of amorphous silicon TFTs. Before buying we recommend you to explore its features and application. These features will let you know about this module is worth.
Display Features of 11 TFT LCD Module:
- Big and Beautiful Display: Say Goodbye to small-size displays, The 10.95-inch offers a generous viewing area. This module is perfect for situations where you need to see a lot of information at once. Enjoy a quite immersive view with this module.
- Sharp and Crisp Images: Yes, this module can produce bright and clear-cut images with WUXGA (1200 x 2000 pixels) resolution, a screen that has everything to offer. Another good feature is that text on the screen will be sharp and even the finest grain in an image will typically not vanish. This makes it perfect for things like photo editing or viewing presentations with complex charts. So what else do you want more?
- Full Spectrum Colors: Improve your overall viewing experience with this module. Colors appear more vibrant and real on the display because it can show 16.7 million colors on the screen.
- Better Technology: Say Goodbye to Old Technology, With TFT technology, the display will amaze you in all aspects. TFT is widely used in mobile phones and shows higher brightness, and contrast clarity as compared to old LCD technology. YES, You heard it right. This module comes up with deeper blacks, higher contrast ratios, and better color accuracy. On top of that, quicker reaction times reduce blurring during action scenes which means this display is great for watching videos or gaming.
Key Features:
- Designed For Longevity & Performance: This module is built to last longer. This enables it to serve a range of applications from the most demanding industrial environments, where long-term reliability is critical, down to consumer electronics stores that need their products used day-in-and-day-out. This means you can rest assured your investment is going into a display that will still be good years down the line.
Applications:
This module is perfect to use in a multitude of applications:
- Industrial equipment and controls
- Medical diagnostic devices
- Automotive displays
- Portable and home entertainment systems
- Information kiosks and digital signage
If you are one of those whose priority is a high-quality display experience with vivid colors, sharp resolution, and wide viewing angles, then you are at the right place. Wanty 11 TFT LCD Module, with its TFT technology, is one of the best options. Wanty, as a manufacturer specializing in TFT LCDs, has decades of experience and expertise in manufacturing these types of panels. Buy it, we assure you, you never regret buying it.
Technical Parameters
|
Parameter
|
Specification
|
Unit
|
Remarks
|
|
Active Area
|
43.1(H)*238.5(V)
|
mm
|
|
|
Number Of Pixels
|
1200(H)×2000(V)
|
pixels
|
|
|
Pixel Pitch
|
0.03975(H)×RGB×0.11925(V)
|
mm
|
|
|
Pixel Arrangement
|
Pixels RGB stripe arrangement
|
||
|
Display Mode
|
Normally Black
|
||
|
Display Colors
|
16.7M(8bits)
|
colors
|
|
|
Display Mode
|
Normally Black
|
||
|
Surface Treatment
|
NC
|
||
|
Contrast Ratio
|
1600:1(typ.), 1200:1(min.)
|
||
|
Viewing Angle(CR>10)
|
85/85/85/85(typ.)
|
deg.
|
|
|
Response Time
|
20(typ.), 25(max.)
|
ms
|
|
|
Color Gamut
|
70.8%(typ.) 65%(min.)
|
||
|
Brightness
|
260(min.)/300(typ.)(LCM)
|
cd/m2
|
|
|
Brightness Uniformity
|
75%(min)/80%(typ)@13P
|
||
|
Power Consumption
|
LCD:TBD(White Pattern) BLU:TBD
|
watt
|
|
|
Outline Dimension
|
LCD: 0.48(max.)(White Pattern)BLU: 2.43W(max.)(w/o Driver)
|
mm
|
|
|
Weight
|
TBD
|
Gram
|
