Capacitive Touch Screen Sizes: Complete Guide for Kiosks

Introduction

The larger the capacitive touch screen size, however, is more than a number; it is the tip of the iceberg of user interaction, indicating how easily users interact with gadgets. When you are choosing capacitive screen size options, whether a slick wearable, an industrial HMI, or a kiosk, selecting the right capacitive screen size can have a direct impact on usability, readability, and design elegance. We are going to take you through all in this comprehensive guide, starting with 7-inch capacitive touch screen specifications, all the way to massive custom capacitive touch screen sizes.

What is a Capacitive Touch Screen?

A capacitive touch screen is based on projected capacitive technology; it detects a touch because of the change in electrical capacitance as your finger gets closer to the surface. This technology is capable of multi-touch, so gestures that can be performed include zoom, pinch, and swipe with input precision rarely achieved by other means.

Technical Terms to Know:

•          Display area (screen resolution, aspect ratio, diagonal display size, display area)

•          Resolution of the touch panel

•          Sensitivity to touching

•          Support of touchscreen controllers

These technical specifications are important when considering various capacitive screen sizes– particularly in those industries that require accuracy.

Aspect Ratio & Diagonal Display Size

The size of the physical interface is determined by the diagonal measurement. Small sizes could be 5 inches, whereas large kiosks can be 65+ inches. Screen format and display layout are determined by the aspect ratio. Increased resolution increases detail, particularly when the display is small. The usual resolutions are:

• 1024 x 768 (XGA) on 7 10 panels
• 19201080 (Full HD) 15, 21.5
• UHD or 4K display and higher than 32

Touch panel resolution and accuracy of mapping of touch input versus visual elements are influenced by the resolution.

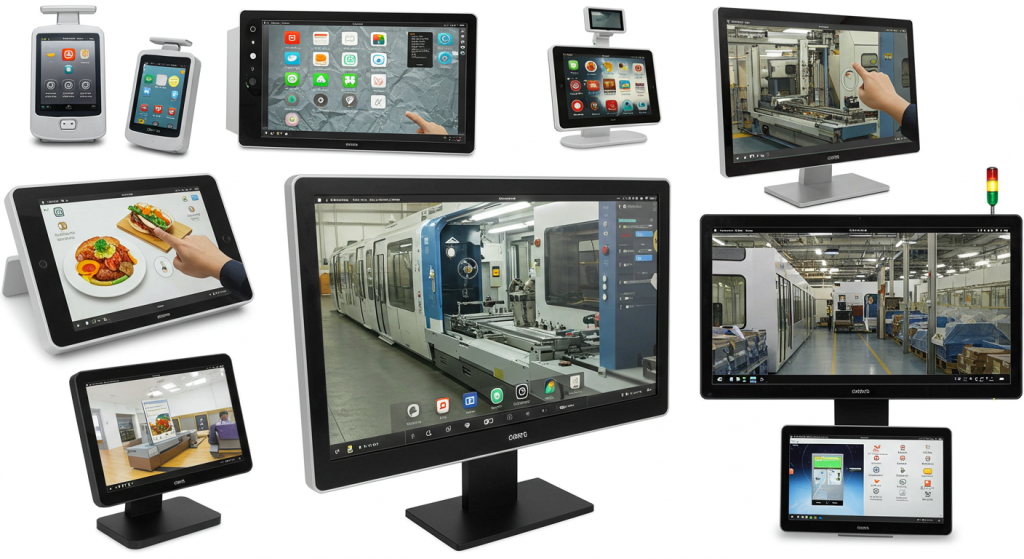

Capacitive Screen Size Types

The size of the application-specific capacitive screen is measured as the pixel resolution in horizontal and vertical directions.

• Environments of Industrials

Rugged durability is vital in rugged environments. Select durable dimensions such as 15 or 21.5-inch capacitive display screen dimensions, with durable cover lenses and IP-rated enclosures. This will make the display durable under extreme conditions.

• Medical Devices

Medical instruments have 7-inch to 12-inch screens, which are sterilized, responsive, and clean. An industrial display capacitive touch screen size guide could provide an idea of any of the formatted sizes of medical panels that would not compromise health by being beyond hygiene levels.

• HMI in Automotive

The Dashboard interfaces are between 10 to 15 inches and provide the optimal reading with the minimum of distraction. These car HMI display screens achieve such a balance between fancy incorporation and comfortable design.

• Kiosk Systems/ POSS

Retail and information terminals have capacitive POS display sizes or kiosk touch screen measurement of 10 to 22 inches. The former offers a sufficient amount of visual real estate to reasonably see clear menus and interactive capacity at standard counter space.

• Smart Home & Wearables

The sizes of capacitive touch panels that one may find in home control panels usually range between small and large dimensions, such as 5 inches to 12 inches. Smart watches/ fitness trackers may be built using 1.3-2.5 inches, though newer interfaces are trending towards 7-10 inches in modern homes to ensure they are visible and easy to navigate.

Customization & Production Factors

• Custom screen size and OEM screen size

Not all the projects are in ideal form. Custom capacitive touch screen sizes enable you to define dimensions, corner radius, and touch area for your design. The terms most commonly used are OEM touch panel sizes, custom screen size, and flat panel integration.

• Manufacturing Methods

The major processes of production:

• Capacitive screen manufacturing (custom)
• Display modular integration
• Dimensions of the cover lens customized according to the build

This kind of flexibility in manufacturing assists special project requirements, particularly when it comes to special equipment or customized consumer electronics.

Finding the Right Size: The Guide

• The Selection of an Appropriate Size of Touchscreen

To choose the best size, consider:

• Your use (handheld v industrial)
• Wanted ergonomics (reachability, clarity)
• Input gestures (e.g., swipe, pinch need sufficient touch space.

• Capacitive Touch Screen Sizes

The capacitive touch screen sizes have been steadily increasing, as shown in the trend below in Leading Edge Bluetooth.

• Rising Demand for Size

With the increase in interactive digital signage, displays above 32” and wide screen format are increasingly becoming standard in retail, hospitality, and the corporate industry.

• Dimensional Foldable Dimensional Flexible

New technology involves a bendable touch screen which varies in size between 7 and 12 inches by design. The innovative aspects of the future necessitate the tailoring of the screen size Xbox 360 and the relevant cover lens dimensions that are suited towards reshaped substrate integration.

• Super-Minimal Interfaces

The trend in wearables and IoT is to ultra-small screens, 1 to 5 inches. Even these devices, however, require sensitive calibration in the detection of gestures and touch response sensitivity.

Conclusion

The capacitive touch screens have different sizes, which adds magic to the user experience. Such is the sharp, clear picture of a 10.1″ kiosk or the smooth handling of a handheld device; proper sizing means an easy-to-use interaction. If tailored designs, customization, or expert advice on size, interface, or module integration is necessary, WANTY Technologies will put bespoke solutions in terms of high-quality display engineering know-how.
